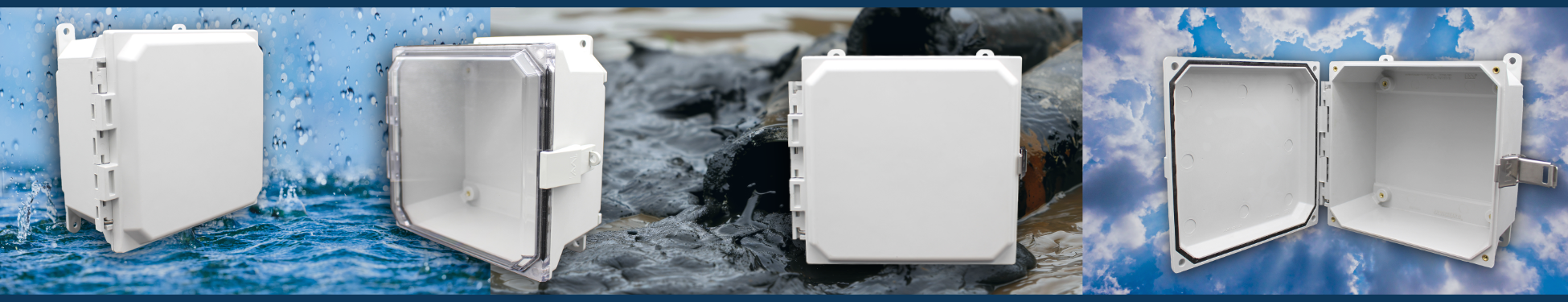

AMU884 Web Header

ULTRALINE® Series

ULTRALINE® fiberglass series enclosures are designed to insulate and protect controls and components in both indoor and outdoor applications and are especially well suited for high temperature or corrosive environments. They feature solid/opaque, viewing window, or clear polycarbonate cover designs, with a variety of latching options that allow you to provide the level of security and ease of access needed for each application.

Expanding the series is the new 8"x8"x4" size option. The new size allows for increased space for electrical components, while boasting a variety of features and benefits including a formed-in-place gasket, 316 stainless steel external hardware, and our UV stabilized ULTRAGUARD® fiberglass material formulation!

Features

AMU884 -Front

Application

Designed to insulate and protect controls and components in both indoor and outdoor applications often found in oil refineries, waste water treatment equipment, and chemical plants

  • Especially well suited for high temperature or corrosive environments
  • Protects from dirt, dust, oil and water
  • For use with industrial control equipment
  • Clear polycarbonate instrumentation cover used in applications where critical electronic equipment must be visible and protected from the elements

    Pictured: AMU884
AMU884CCL -Front (2)

Construction

  • Compression molded fiberglass reinforced polyester construction with flush, solid/opaque, viewing window, or clear polycarbonate cover options
  • Opaque cover, nonmetallic latch, base, feet, flanges - Light gray color (RAL 7035)
    Note: foot models mounting hardware supplied in a bag. Flanged models are pre-assembled.
  • 316 stainless steel hinge pin and snap latch with padlock hasp (3/8" Dia.)
  • Formed-In-Place (FIP) polyurethane gasket system encased in continuous channel
  • Polycarbonate foot/flange mounting brackets with 316 stainless steel fasteners
  • #10-32 threaded brass inserts for optional back panel installation

    Pictured: AMU884CCL
AMU884LF -Latch

Standards

  • UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P (screw cover only), 12 & 13
  • CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P (screw cover only), 12 & 13
  • Complies with:
    • NEMA Types 1, 2, 3, 3R, 4, 4X, 6P (screw cover only), 12 and 13
    • IEC 60529 Type IP66, and units rated 6P are Type IP68 submersible up to 24 hrs at a depth of 6 feet (1.8 meters)
    • RoHS directive

      Pictured: AMU884LF

Additional Information

Industrial Enclosure Accessories
AM2068SO28_tsp

Optional Accessories

Available accessories include back panel kits, ULTRAPLUG® hole plugs, & much more!



Custom Modifications

Custom holes and cutouts, along with polycarbonate viewing windows are available. Contact factory for additional modification options.



Check out some of our options!

Customize our AMU884 with various covers, latches, and mounting brackets.
