ENCLOSURE ACCESSORIES

Accessories that are Universal by Nature

Allied Moulded’s accessories are designed to support protective performance while helping you meet the physical demands of the job. From sealing unused openings to helping protect sensitive equipment interfaces, these solutions give electrical professionals dependable options for maintaining protection where it matters most.

Often, enclosures have been in service for several months or even years before the need for an accessory presents. That's why Allied Moulded's accessories are designed to be universal and work with virtually any enclosure, making them a practical addition whether you are using an Allied enclosure or another brand. In fact, they can even be used with enclosures of different material types such as fiberglass, polycarbonate, or stainless steel.

No matter the stage of your project, Allied Moulded accessories help you address application challenges, improve performance, and maintain the enclosure's protective standards.

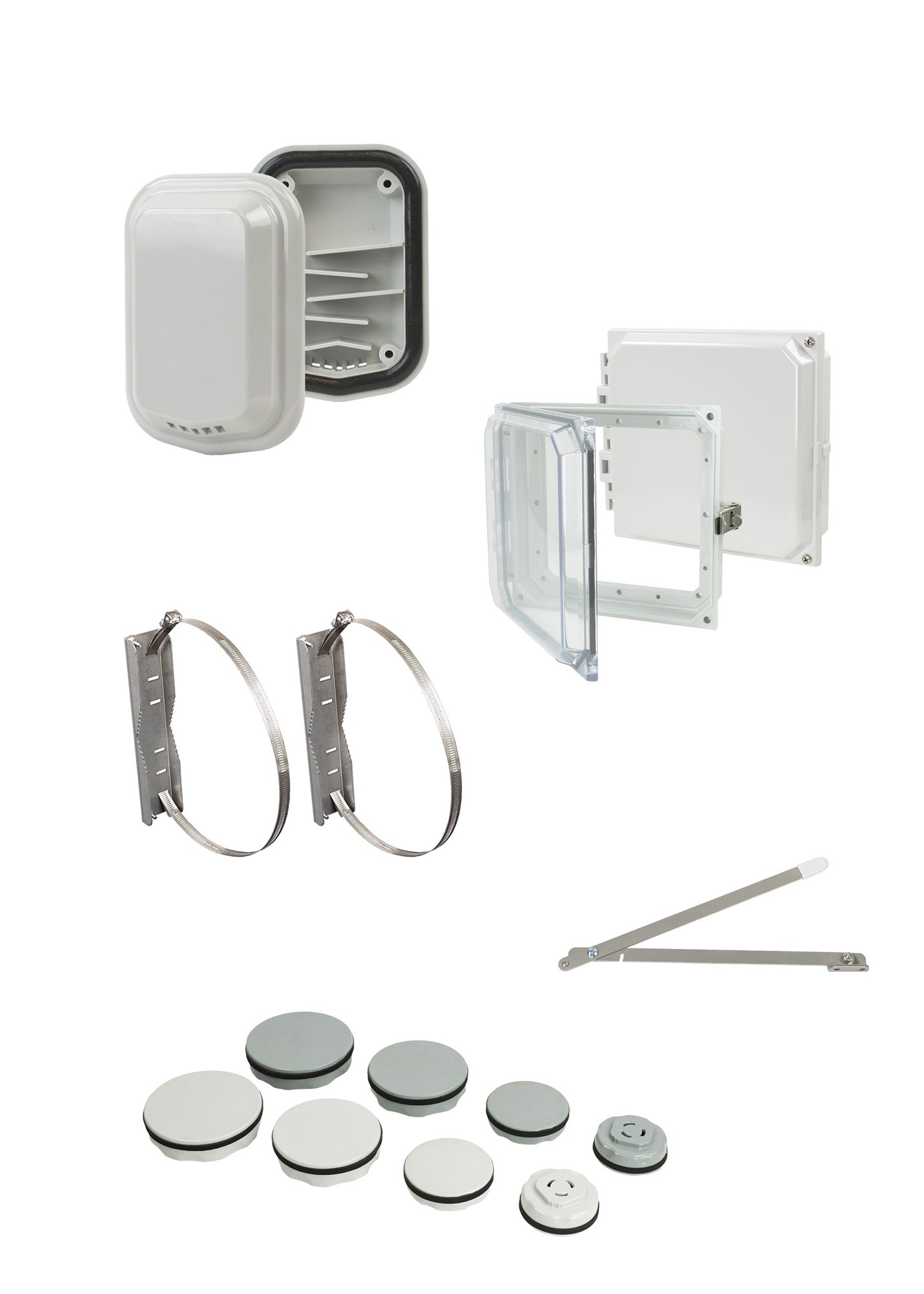

Industrial Enclosure Accessories 3

NEMA 4X Performance

Many of Allied Moulded's accessories are designed to help maintain protection up to a NEMA 4X level, giving you added confidence in environments where moisture, dirt, and corrosion can put equipment at risk. When conditions are demanding, dependable accessories play an important role in helping preserve enclosure integrity and support long-term performance.

Built for reliable protection, these accessories help safeguard critical components in applications where durability is crucial.

  • HMI Cover Kits
  • AMVENT4XLG
  • Ultraplug® Hole Seals
Whether you are working in industrial settings, outdoor installations, or other challenging locations, choosing the right equipment can help reduce exposure to environmental elements and support a more secure, dependable installation.

Take a closer look at these accessories below to see how they support long-term enclosure performance.
Industrial Background Abstract

HMI Cover Kits

HMI Cover Kits are designed to provide protection for instruments or electronics on the enclosure exterior or requiring routine attention or surveillance. These mount securely to the outside of any enclosure option, and makes accessibility to electronic components easy!

Add a prop arm kit for added convenience, allowing the HMI cover to remain in the open position.

  • Easy HMI or component visibility
  • Maintain NEMA 4X Standard
  • They are UL listed
  • Strong and rigid design
  • Well suited for a variety of indoor or outdoor applications
* Optional prop arms secure the cover kit in the "open" position, and allow for easy access to electrical components.

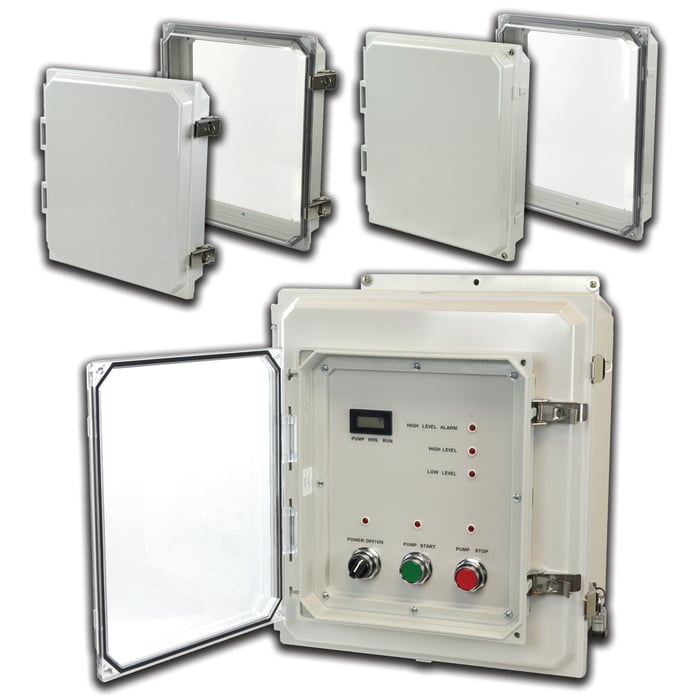

HMI-cover-kits

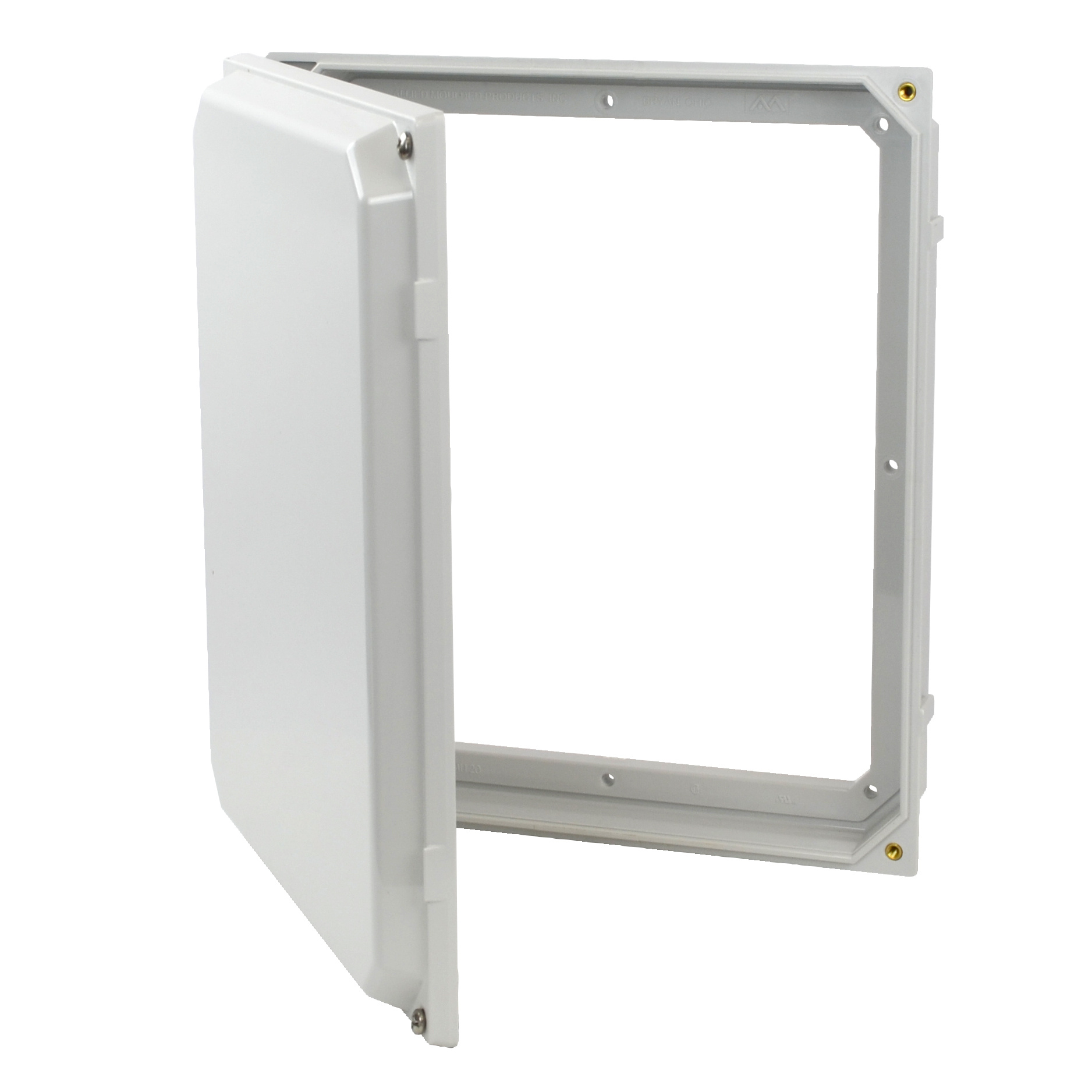

AMHMI_Open

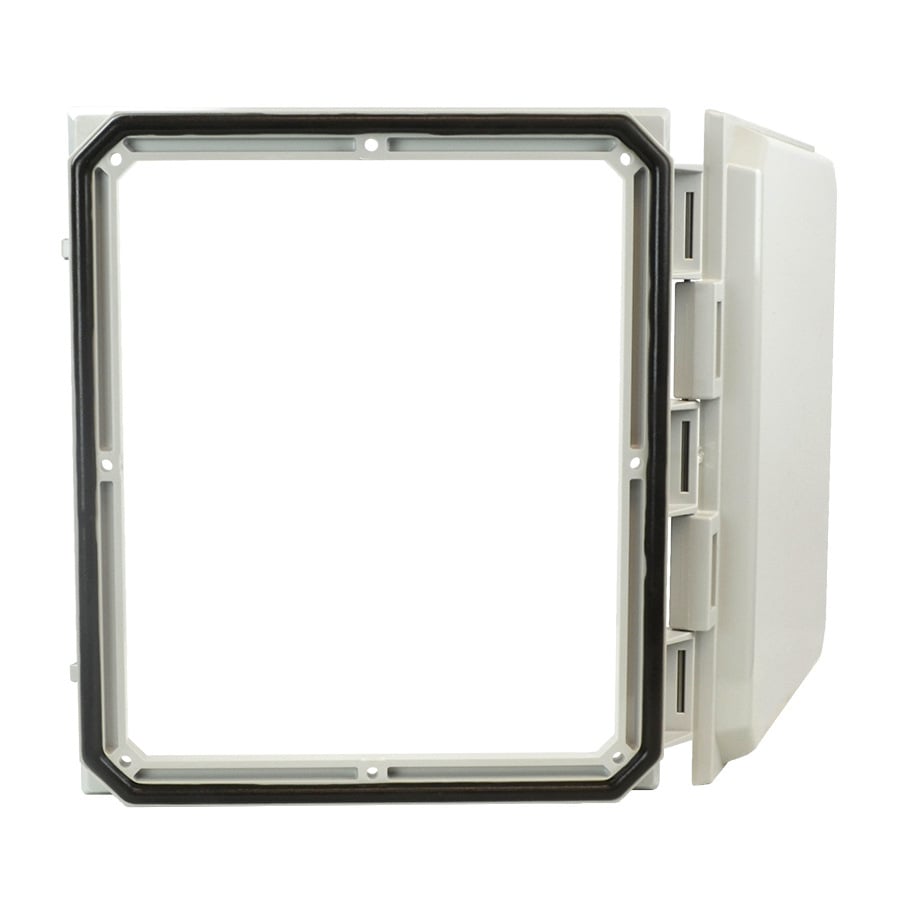

AMHMI_Back

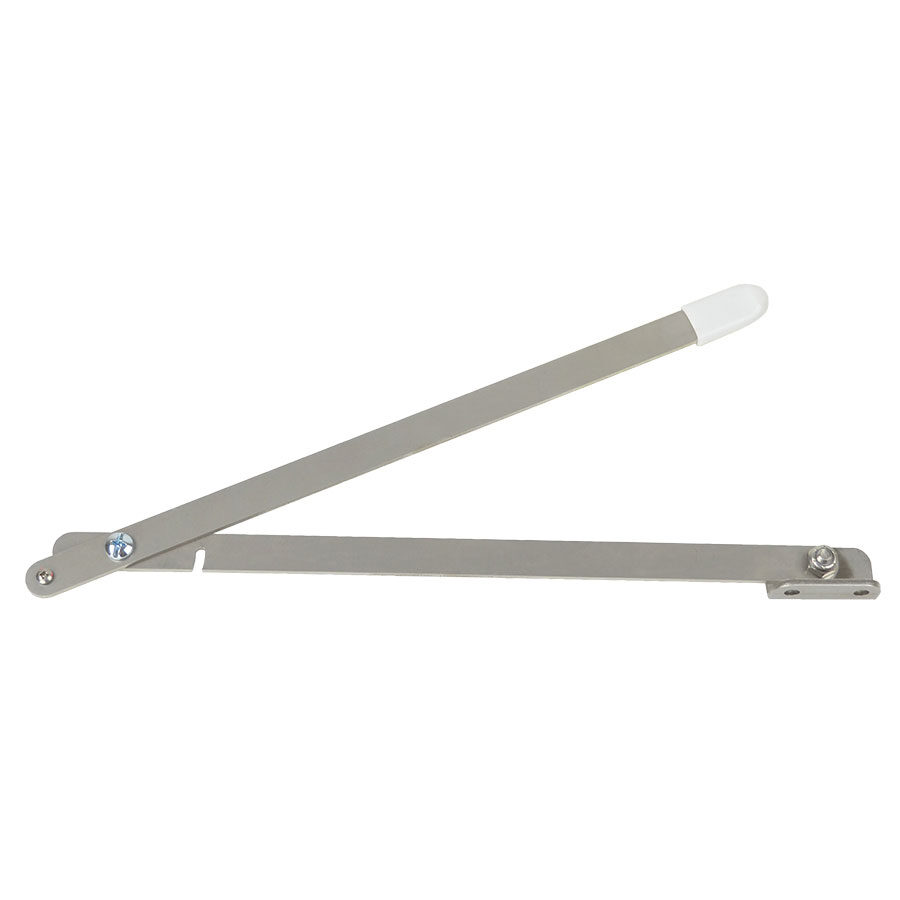

AMHMIPROP120

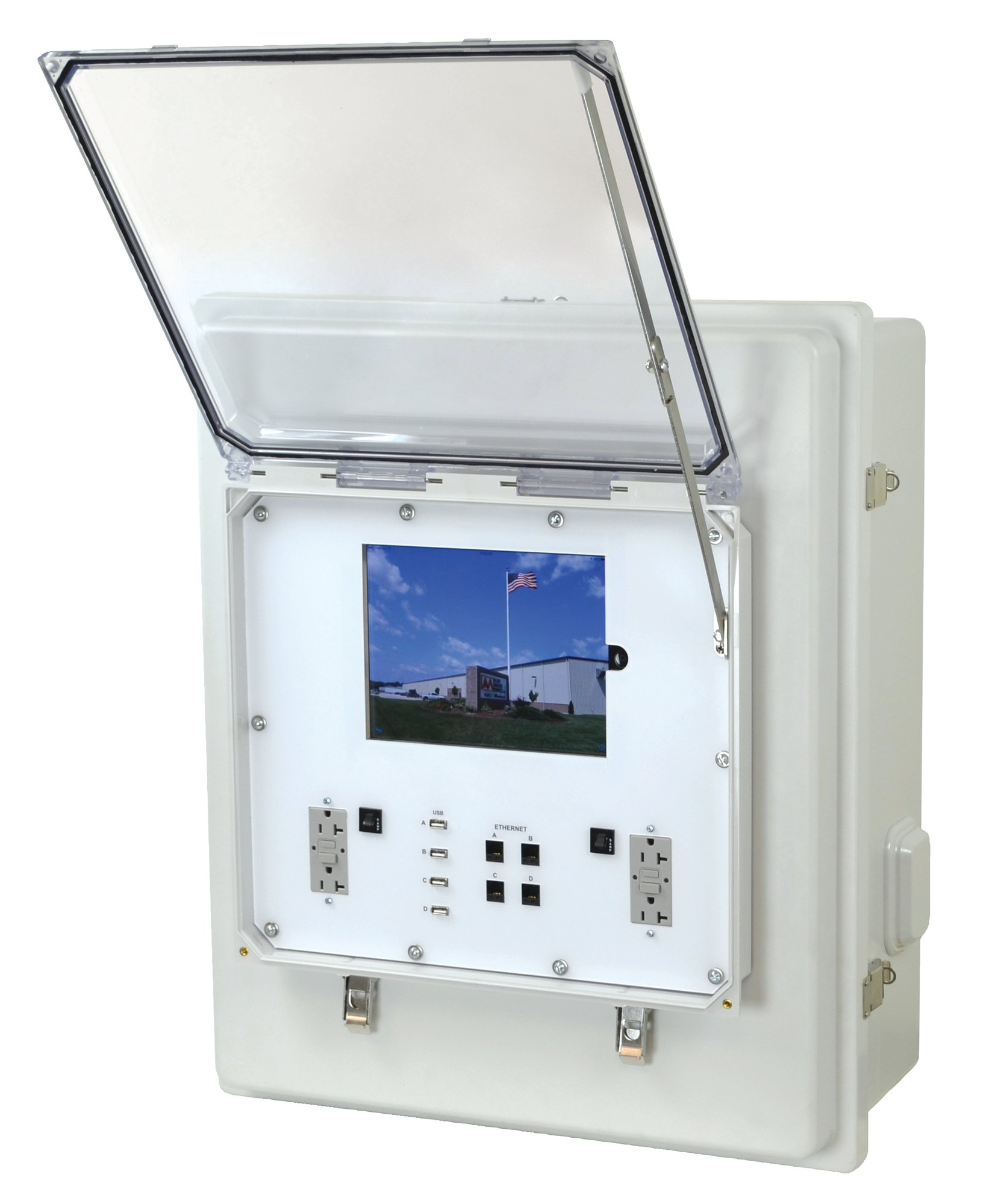

DSC_0025_cutout

Construction

  • Cover options include clear polycarbonate thermoplastic or polycarbonate solid opaque
  • UV stabilized for outdoor use
  • Formed-In-Place (FIP) polyurethane gasket in continuous channel
  • Designed for use with wall thickness ranging from 16 gauge through 1/4"
  • #10-32 threaded brass inserts with plated steel mounting fasteners
  • Multiple latching options available
  • 316 stainless steel cover latching hardware and hinge pin
  • Snap latches feature padlock hasp (3/8")
  • Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574

  • UL listed enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.

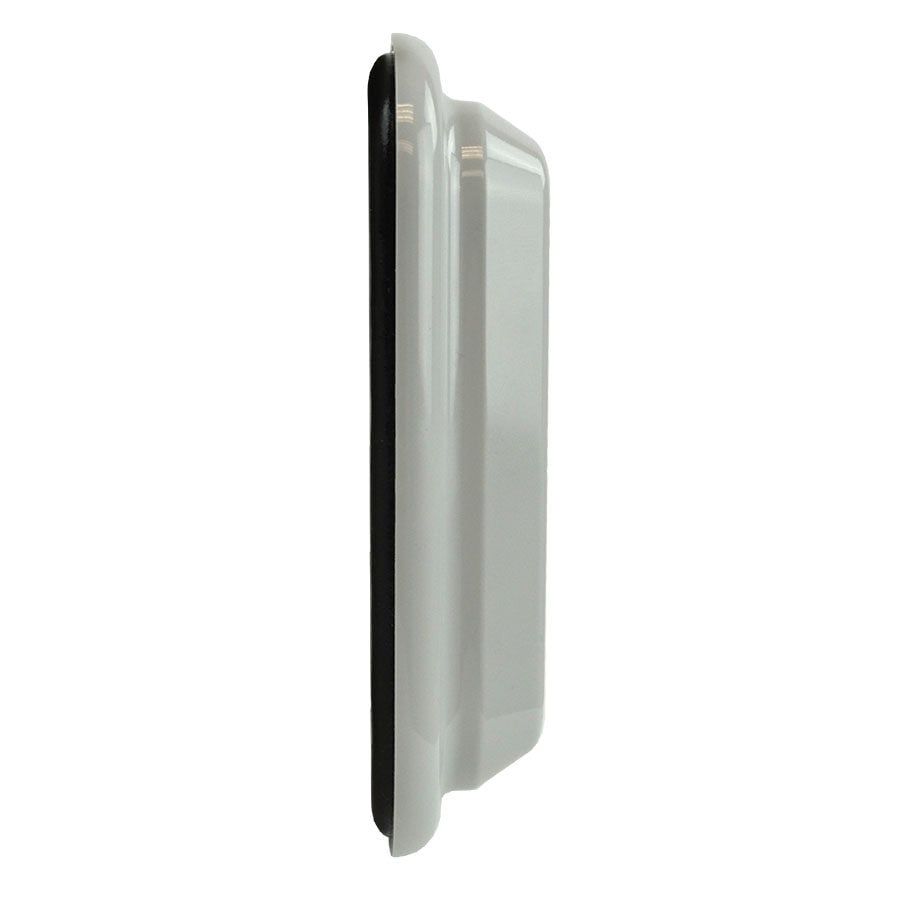

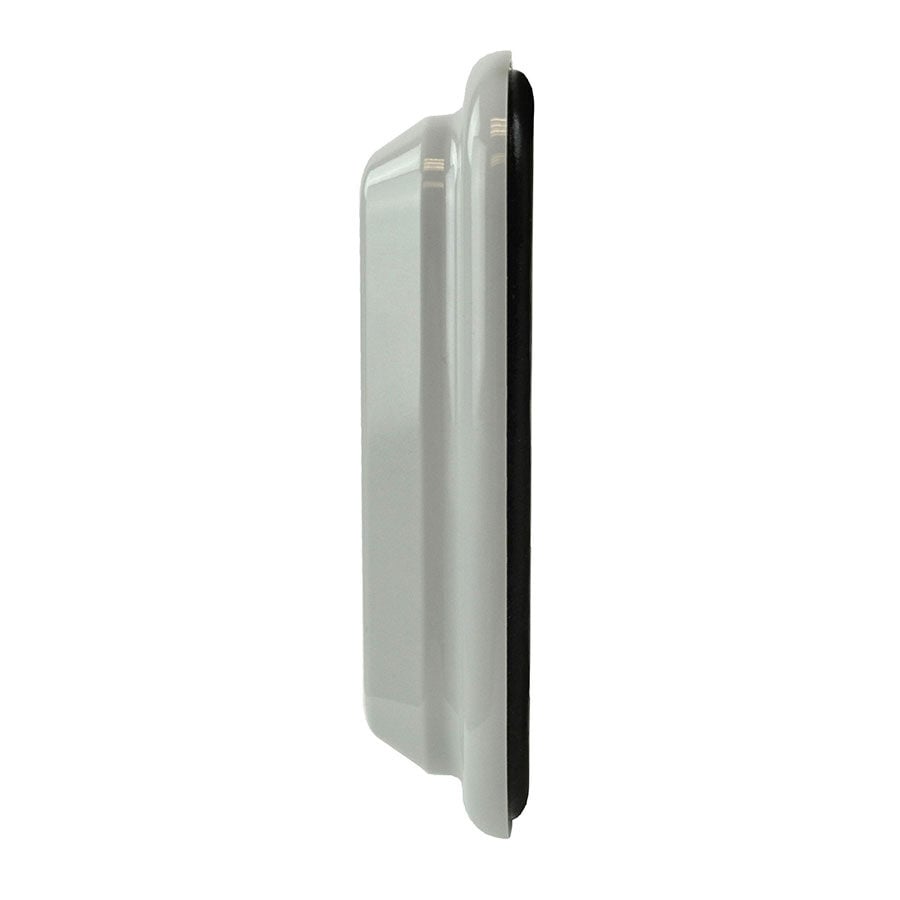

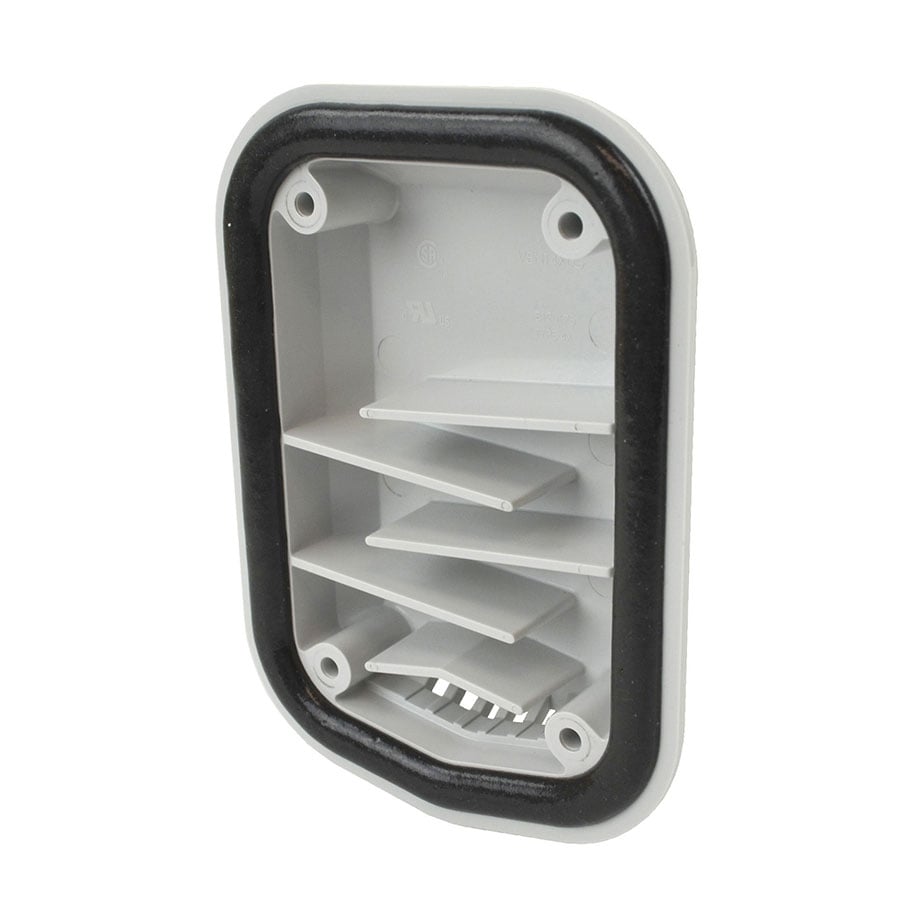

AMVENT4XLG

Proper ventilation for an electrical enclosure can help ensure the critical electronic components housed in the enclosure operate continuously and efficiently. After all, enclosures are found in many environments around the world – from salty coastal areas to humid factories to frozen tundras; keeping the components working on the inside, in any type of environment, is integral to the enclosure system.

  • Corrosive and impact resistant.  Ideal for wet, dusty, or corrosive environments.
  • Aids in venting electrical enclosures, reducing heat and condensation on the inside.
  • Set Includes (2) vents. Recommended to install on opposite sides of the enclosure with one high and one low for optimum air flow.
  • Includes mounting hole pattern for easy installation.

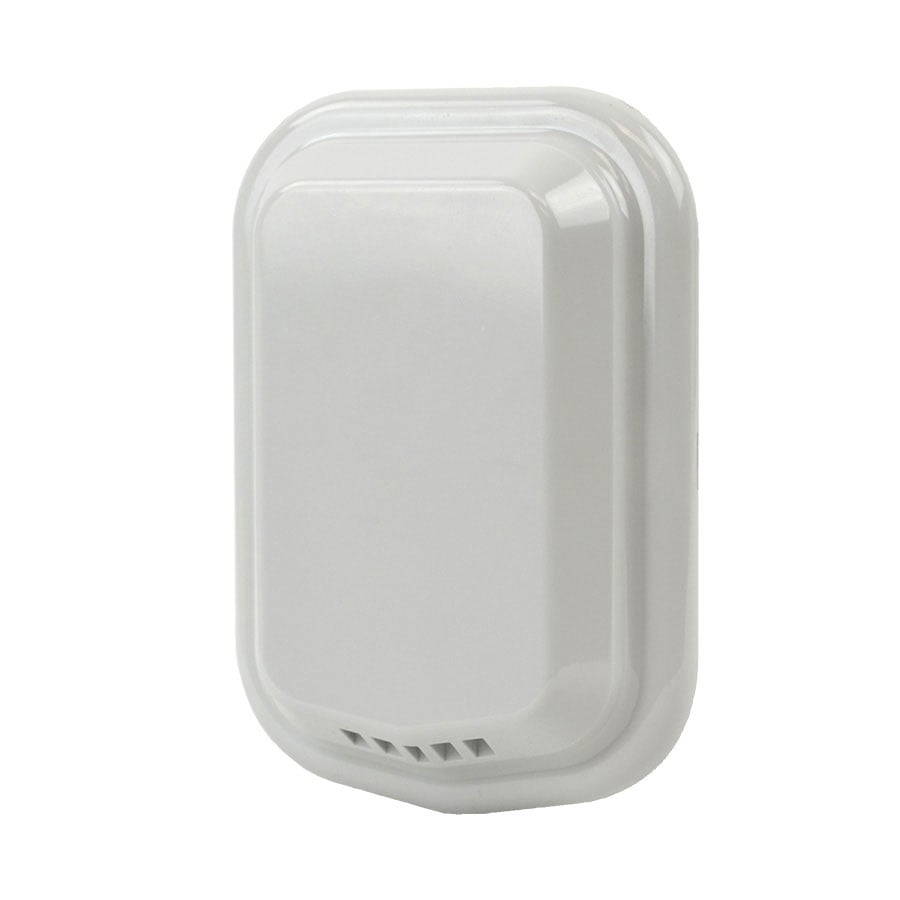

AMVENT4XLG-1

Construction

  • Polycarbonate thermoplastic material
  • Polyurethane (FIP) Formed-In-Place gasket system
  • 316 stainless mounting fasteners
  • RAL 7035 light gray color

  • Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574

  • UL listed enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.

AMVENT4XLG-1-1
AMVENT4XLG-5
AMVENT4XLG-3

ULTRAPLUG® HOLE SEALS

Allied Moulded ULTRAPLUG® hole seals are designed to plug and seal unused holes NEMA 4X enclosures and maintain applicable NEMA/UL/CSA. They fit a wide range of sizes and feature a self-centering, anti-rotational design, ensuring quick and simple one-person nut assembly with no tools required for tightening!

  • Easy one-person plug assembly
  • Innovative plug "fins" are self-centering and anti-rotational for fast, no-tools tightening
  • Maintain NEMA 4X Standard
  • Seal holes ranging from 1/2" to 4-3/4"
  • Low profile - saves valuable panel space
  • UL listed and recognized

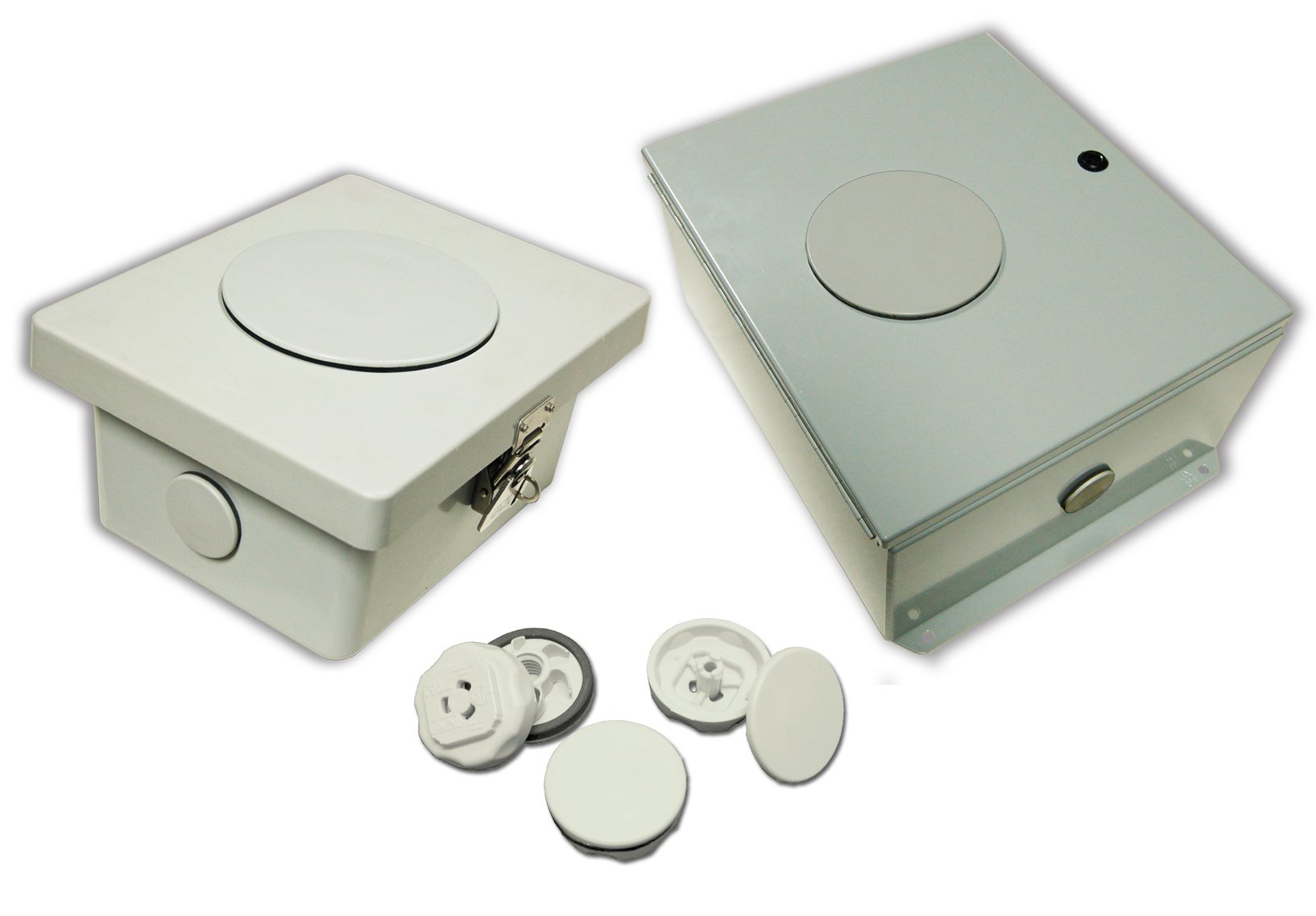

ULTRAPLUG_Collage02

Simple Installation

1. Push and twist the plug into the hole, engaging the fins.

2. Screw in and tighten the nut until the plug bottoms out on the substrate. Hand tighten only.

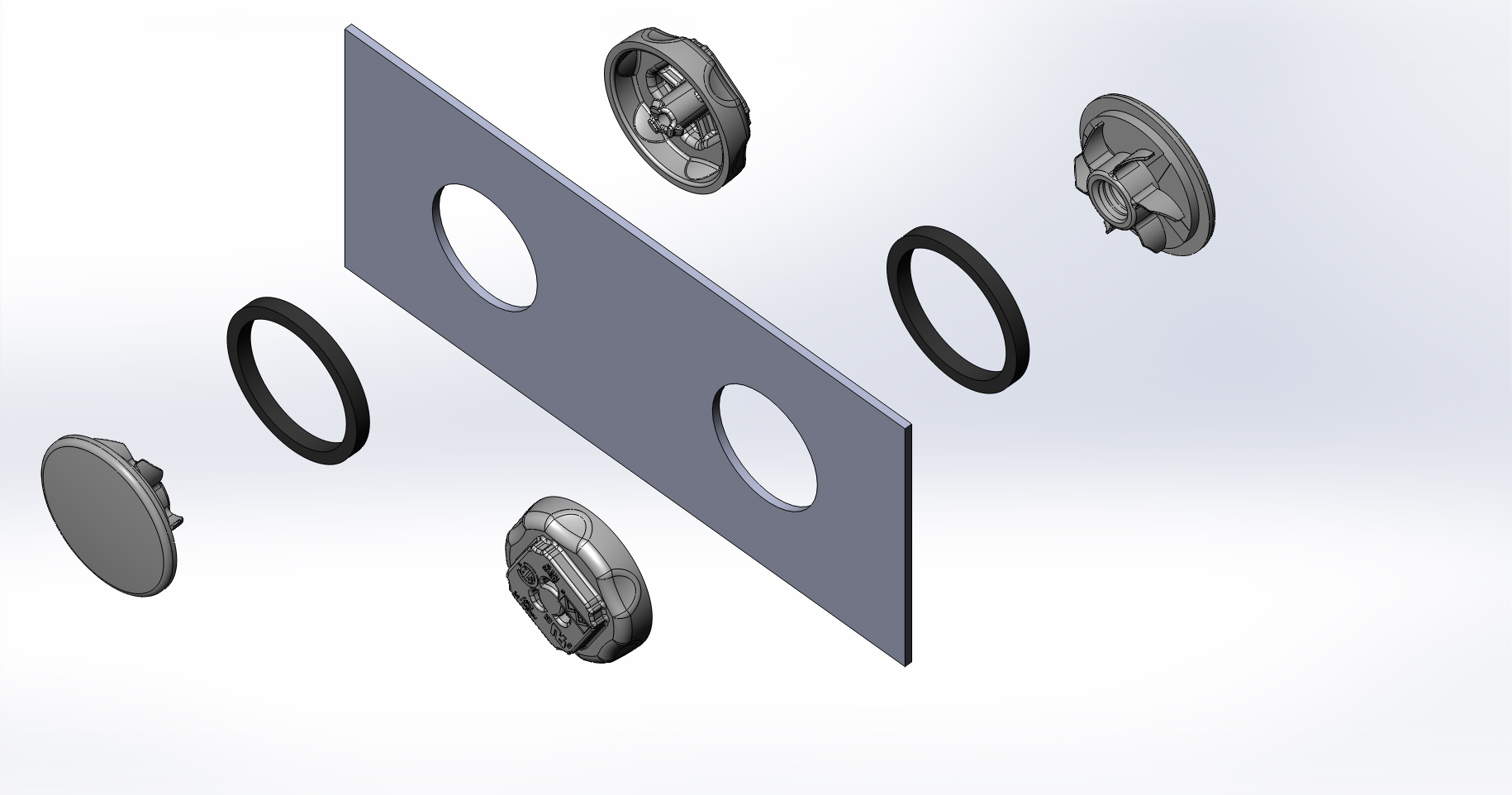

AMU664 with hole seal10

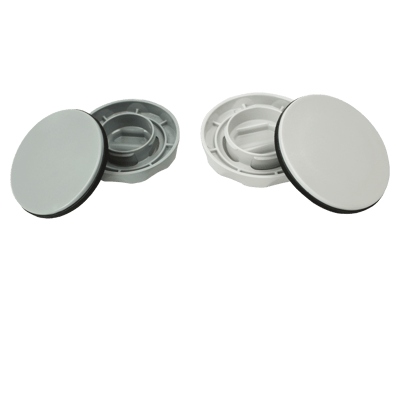

Hole Plugs

Construction

  • Molded of polycarbonate material with neoprene/EPDM gasket
  • RAL 7035 light gray or ANSI 61 Dark Gray color to match metallic or nonmetallic enclosure materials

  • Meets Requirements:  ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574

  • UL® listed and recognized component for use with enclosure products Types 1, 3, 3R, 4, 4X, and 12.

  • Complies with:
    1. EN / IEC 60204-1 and 60529 Type IP66
    2. RoHS directive

  • Designed for use on flat smooth surface of Type 1, 3, 3R, 4, 4X and 12 enclosures with wall thickness from 16 gauge through 1/4"
Hole_Plugs_Group3
