Insulate and Protect

AM Series enclosures are designed for UL listed panel builders and OEM customers to protect electrical components from dirt, dust, oil, and water. With a NEMA4x rating, our AM Series enclosures are suitable for both indoor and outdoor applications, and provide exceptional coverage and protection in extreme temperatures, highly corrosive environments, and in prolonged sun exposure.

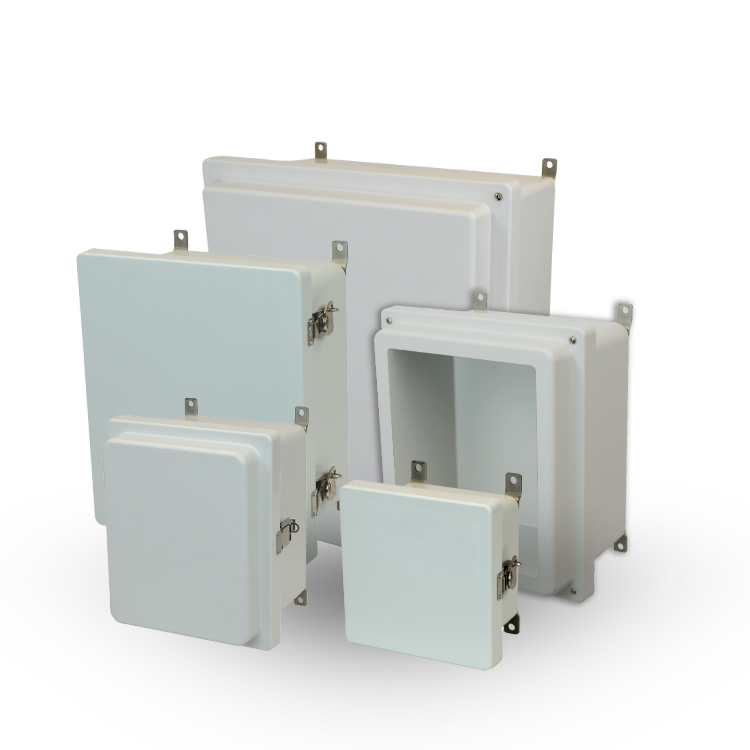

AM Series Enclosures

JIC Enclosures

  • Available in standard sizes recognized by the Joint Industry Council, in addition to small junction boxes.
  • Strong and rigid enclosures used to house electrical controls and instruments in a variety of industrial settings.
  • Available in both flat and raised covers with a window option and choice of closure latch.

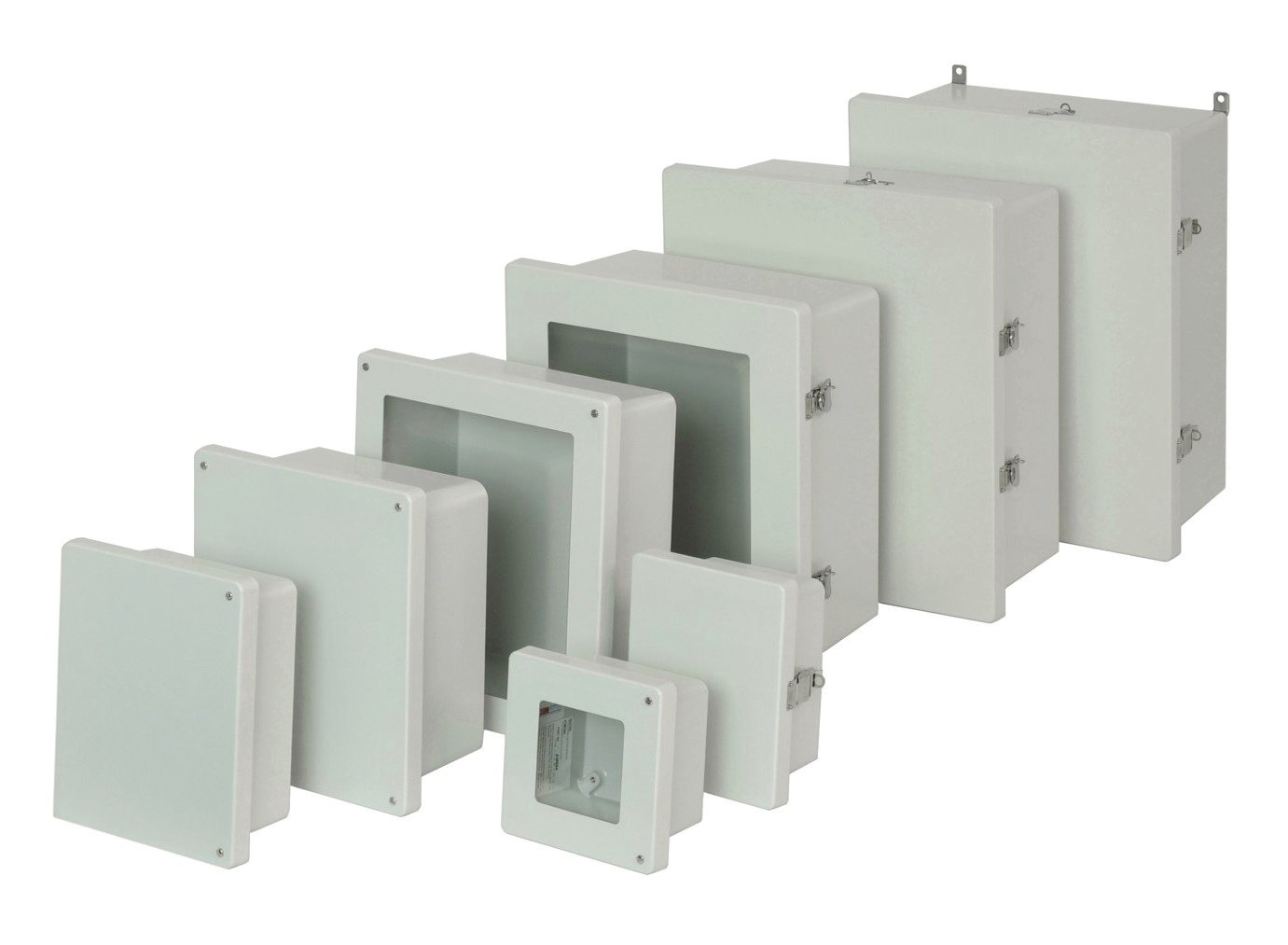

JIC Flat Cover LG

Features & Benefits

  • Molded Ultraguard® fiberglass reinforced polyester material construction for durability
  • Continuous 316 stainless steel hinge
  • Formed-In-Place (FIP) polyurethane gasket system encased in continuous channel
  • Matching flat or raised cover
  • 316 stainless steel hardware and mounting feet
  • Mounting panel inserts for optional back panel
  • UV stabilized for outdoor use
  • Non-corrosive, non-conductive, temperature-resistant, and fire-resistant

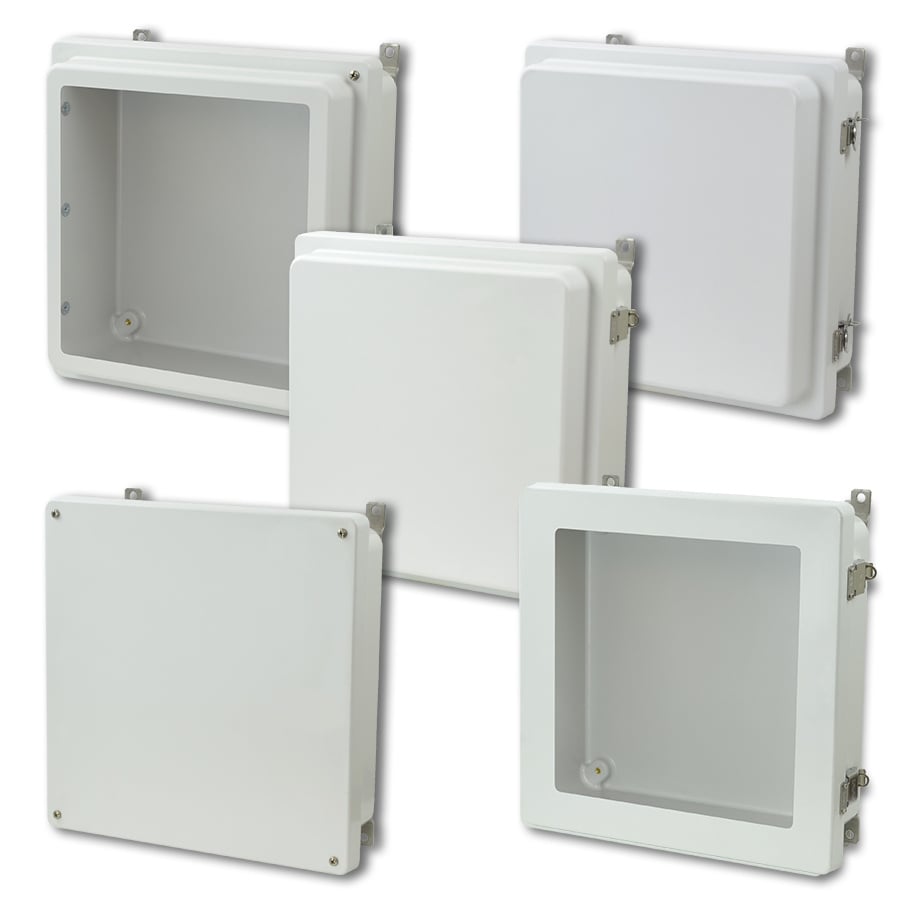

AM12x12group_3x3-300dpi

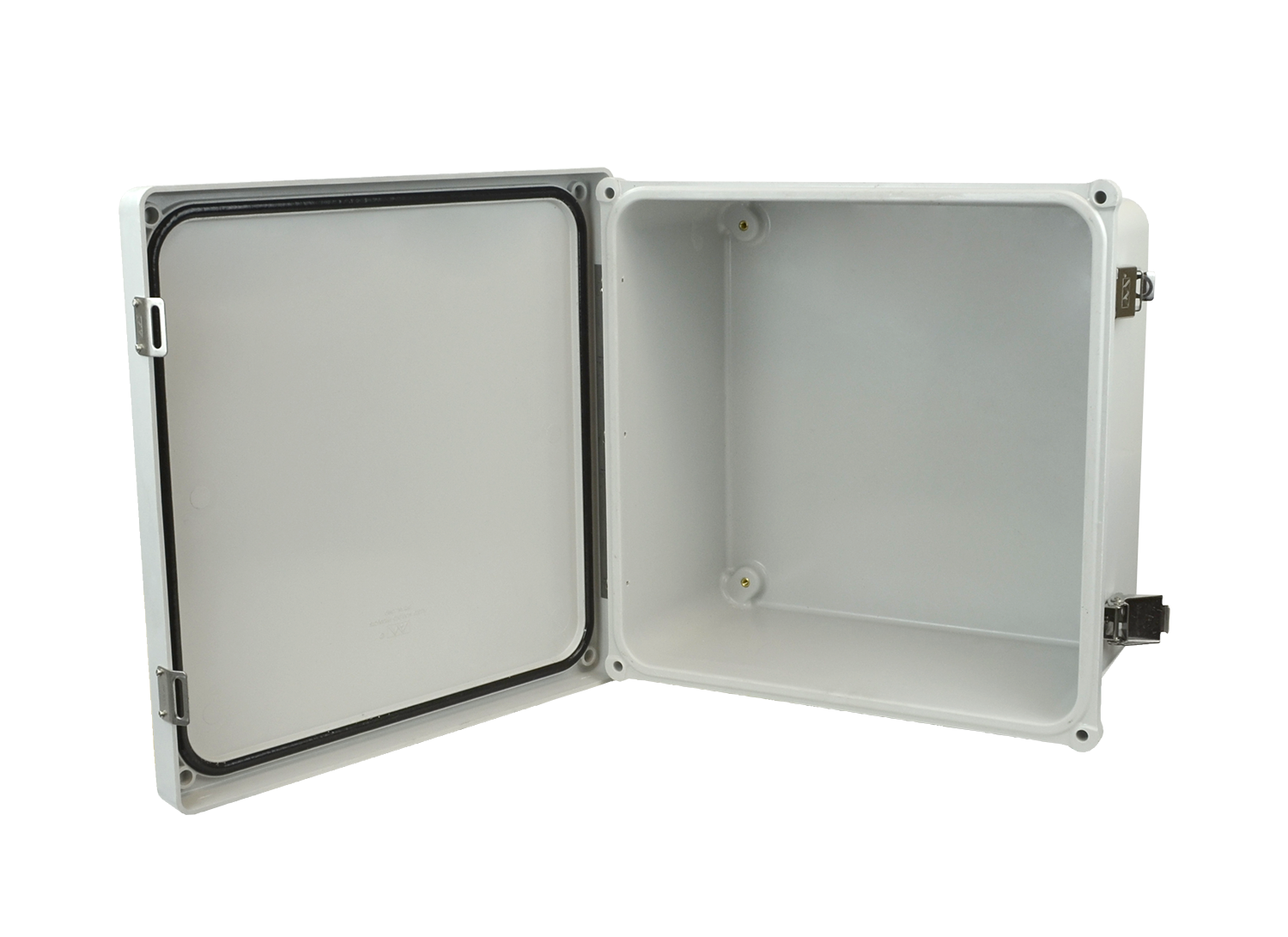

AM Series Open

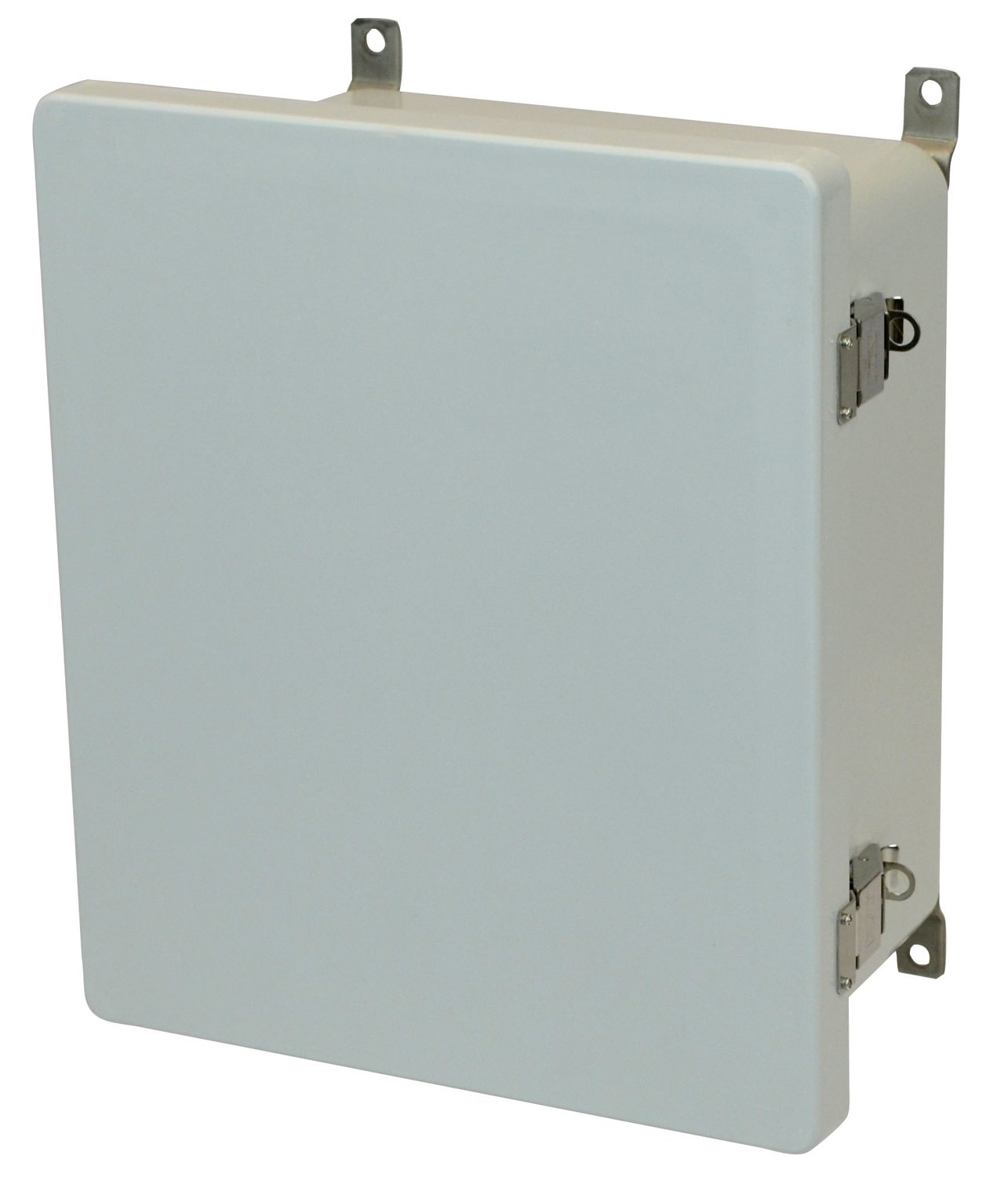

AM1648L

Standards

  • UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12
    and 13; File No. E120175
  • Complies with:
    1. EN / IEC 60204-1 and 60529 Type IP66
    2. RoHS directive





Application

  • Manufacturing / Automation
  • Water / Wastewater Treatment
  • Solar / Renewable Energies
  • Power Generation Control Systems
  • Transportation Systems
  • Pumping and Chemical Processing Controls





Compliance Logos
